PVS DIY Night Vision Module

Last updated: June 12, 2025

With two simple consumer electronic components, I, alongside two other university friends built a Night Vision monocular for fun. this is an available, open source project and we followed the existing schematics for wiring and assembly.

The components were resin printed and were really high quality. Done on a Creality Halo printer.

3D Printed

Components:

  • V760 Displays 90-120 dollars, I went for model A-3.
  • RunCam Night Eagle 3, 30 dollars.

Github repo:

https://github.com/knack-tactical/PVS-69/tree/main/Gen3%20FOXTROT

Printable Stl’s

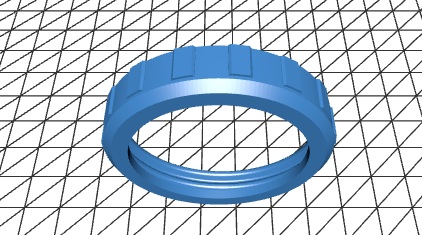

Collar (optional)

3D Printed

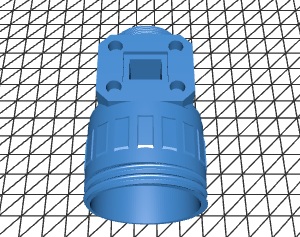

Tube (required)

3D Printed

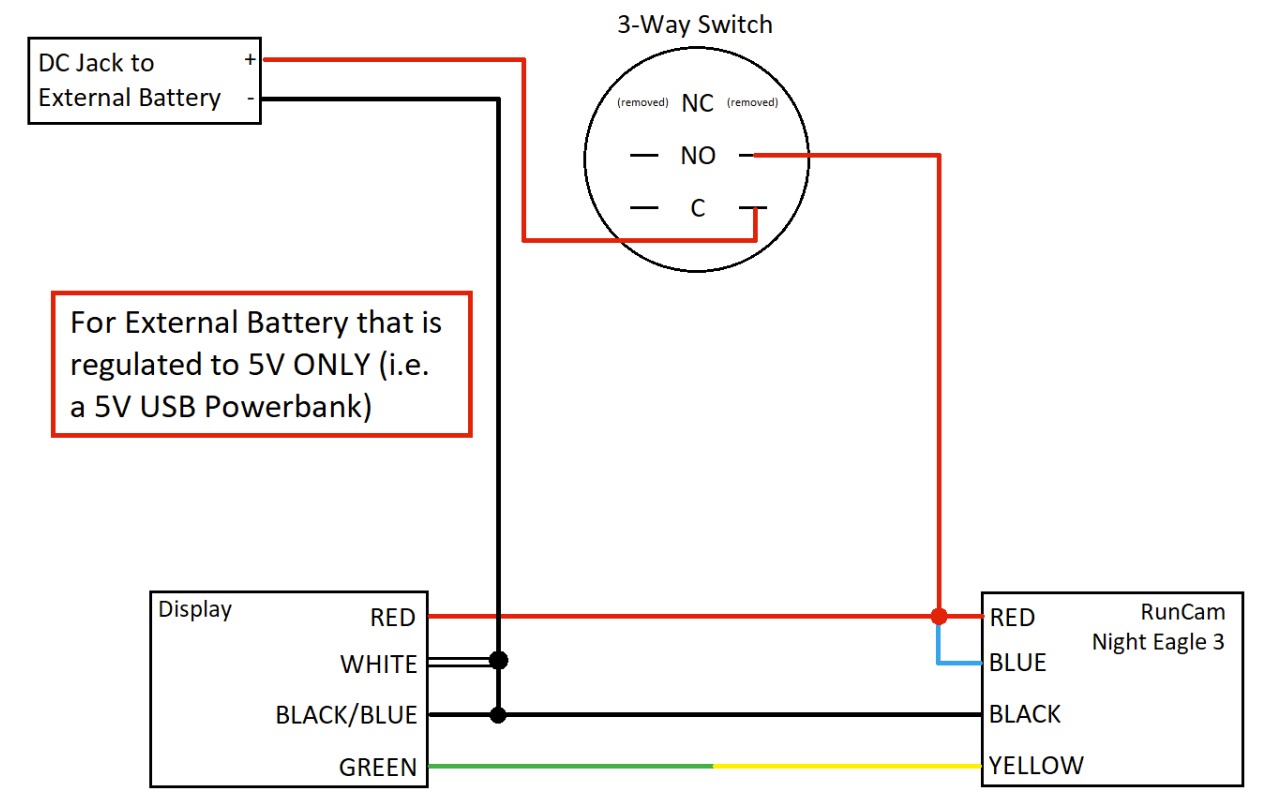

Electrical connections

Connect Every ground and 5V to a power supply, I used a female usb-c jack and connected black to black(or blue for display ground), alongside the white display wire and the white from the display. Green data from display with yellow data from camera. Blue signal high with 5v stream.

The camera also has two blue/white RX/TX connections for the button control (you can customize image settings with this, I put it on the side)

3D Printed

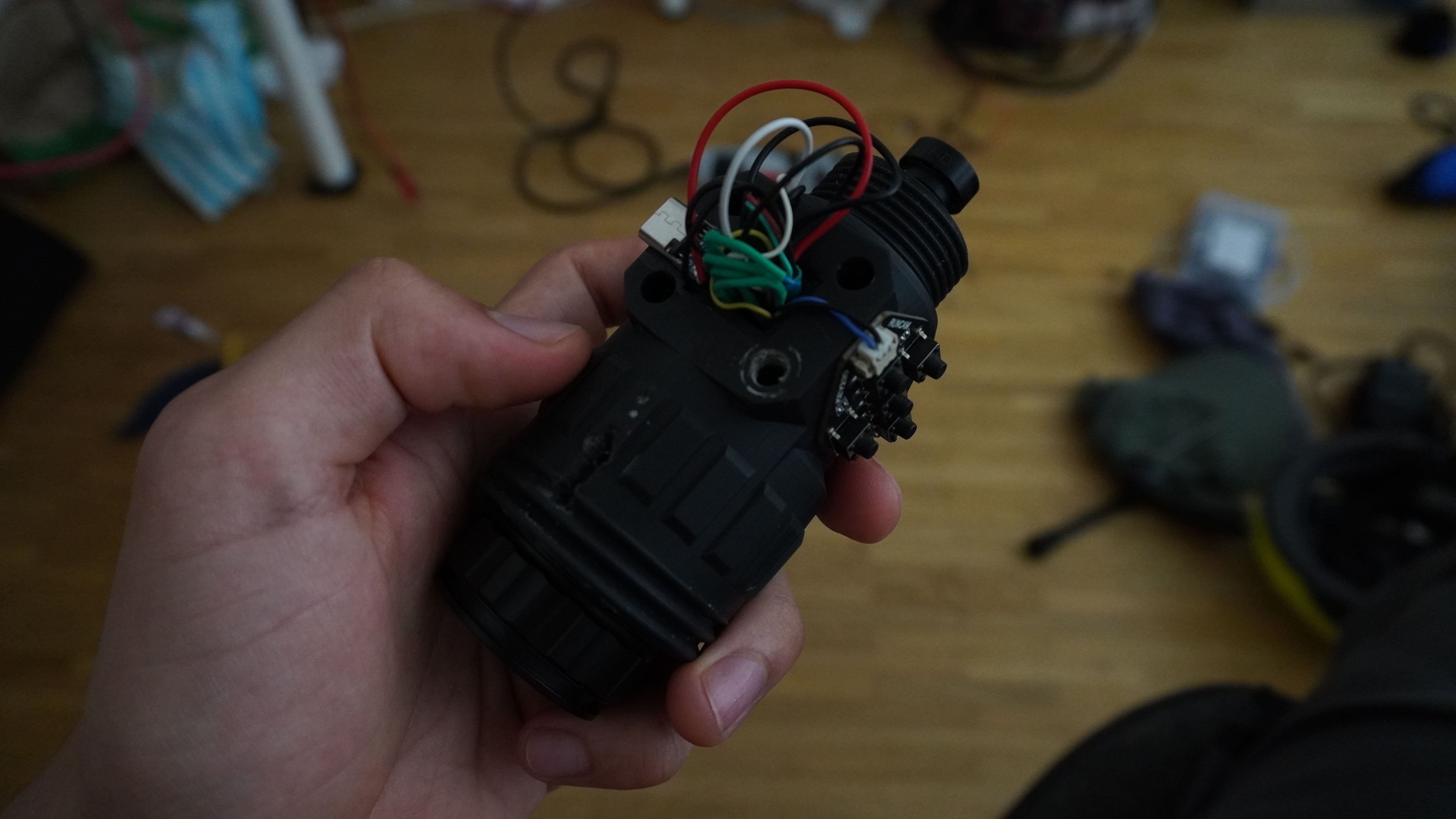

Final Assembly

3D Printed

Video Testing

Hiking Test 1

Outdoor Test 2

Night Vision 3D Printing Resin printing
View github source →
